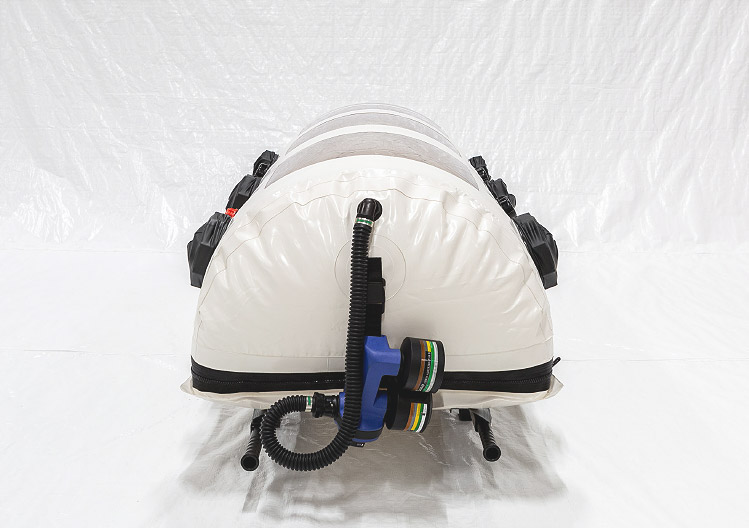

Infectious patient isolation pod (IPIP)

Rapidly deployable one-patient
evacuation system.

The system is used to protect medical personnel or the surrounding interior from secondary patient contamination. The IPIP (Infectious Patient Isolation Pod)is made with reliable materials carefully selected to provide rugged and reliable usability against biological threats such as viruses and bacterial disease.

Download a Brochure

The blower feeds an over pressure system with HEPA P3 filtered air. The fresh air flows from head to feet for comfort.

The air is filtered again as it is expelled from the unit. The battery powered blower provides up to 8 hours independent operation time. The unit comes packed in a PVC case which can be decontaminated if necessary.

The system allows for continuous monitoring and treatment of the patient using a feed through set for IV, O2 and monitor cables. And has the option of extra glove insertions.

The unit comes packed in a PVC case which can be decontaminated if necessary.

BASIC INFO
Weight with blower 15 kg
Lenght, deployed 215 cm
Width, deployed 80 cm
Set-up time Under 5 min.
Operation time Up to 8 hours with battery

PROTECTION
P3 HEPA Filtration
Protection factor: 3570 (ISO 29463-2:2018 ; EN 12942:2009)

Download a Brochure

Basic set-up
• Infectious Patient Isolation Pod
• Blower unit
• 5 filters HEPA P3
• Long sleeved bio resistant gloves
• Package
• User manual

Optional accessories
• Feed through set for IV O2 and monitor cables
• Extra glove insertions
• Ambulance stretcher attachments
